商品の詳細:
お支払配送条件:
|
| 製品名: | 電流を通された田園農場7-90-30 200mロールによって編まれるワイヤー分野の塀 | ゲージ: | 12ga.14ga.12.5ga.11ga 2.5mm、2.0mm |
|---|---|---|---|
| 高い: | 60cm-200cm、4ft-7ft | 塀ロール: | 50m、100m、200m |
| ワイヤー スペース: | 15cm、30cm | 材料: | 電流を通されたワイヤー |
| 適用: | 農場の塀、動物の塀、分野の塀 | Surefaceの終わり: | 電子電流を通された、熱いすくいは電流を通した |
| 亜鉛コーティング: | 50g、200g | 使用法: | 耕作および農業 |
| 織り方のタイプ: | 共同の、固定結び目に蝶番を付けなさい | パッキング: | の裸体またはパレット |
| ハイライト: | 電流を通された編まれたワイヤー分野の塀,編まれたワイヤー分野の塀は電流を通した,編まれたワイヤー分野の塀200mロール |
||

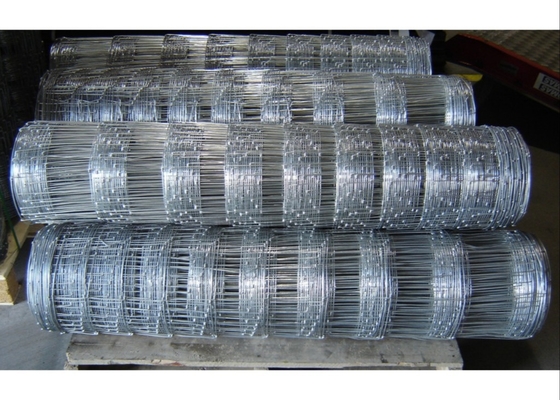

Galvanized Rural Farm 7-90-30 200m Roll Woven Wire Field Fence
Woven Wire Field Fence description:
1. HINGE JOINT WIRE FENCE 7-90-30 200M Per roll
· Hinged joint “knot” allows the fence to flex under stock pressure
· Cost-effective solution for hobby farms and smaller rural properties
· 2.00mm and 2.5mm Galvanised wire mesh
Suitable for -:
· Goat
· Sheep
· Pig
· Cattle
Configuration description example:- 7 - 90 - 30 - means 7 horizontal wires, mesh is 90cm high, vertical stay wires are 30cm apart
VERITCAL WIRE DIAMETER: 2.0mm
END WIRE DIAMITER: 2.5mm
WIDTH 900MM, LENGTH 200 METER
Woven Wire Field Fence specification:
|
Sequence number
|
Specification
|
weight kg
|
Edge wire diameter mm
|
Inner wire diameter
mm |
|
|
1
|
7/150/813/50
|
102+114+127+140+152+178
|
19.3
|
2.5
|
2.0
|
|
2
|
8/150/813/50
|
89(75)+89+102+114+127+140+152
|
20.8
|
2.5
|
2.0
|
|
3
|
8/150/902/50
|
89+102+114+127+140+152+178
|
21.6
|
2.5
|
2.0
|
|
4
|
8/150/1016/50
|
102+114+127+140+152+178+203
|
22.6
|
2.5
|
2.0
|
|
5
|
8/150/1143/50
|
114+127+140+152+178+203+229
|
23.6
|
2.5
|
2.0
|
|
6
|
9/150/991/50
|
89(75)+89+102+114+127+140+152+178
|
23.9
|
2.5
|
2.0
|
|
7
|
10/150/1245/50
|
102+114+127+140+152+178+203+229
|
26.0
|
2.5
|
2.0
|
|
8
|
10/150/1194/50
|
89(75)+89+102+114+127+140+152+178+203+229
|
27.3
|
2.5
|
2.0
|
|
9
|
19/150/1442/50
|
89+102+114+127+140+152+178+203+229
|
28.4
|
2.5
|
2.0
|
|
10
|
11/150/1442/50
|
89(75)+89+102+114+127+140+152+178+203+229
|
30.8
|
2.5
|
2.0
|
Woven Wire Field Fence weaving:

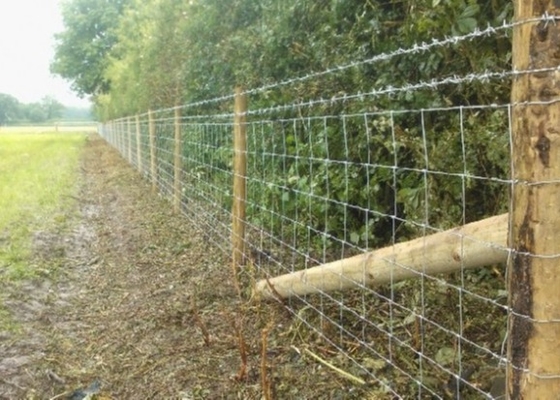

Woven Wire Field Fence application:
1.Widely used in grasslands, rangelands, forests, poultry house, feeding, stadium, green belt,
2.Used in embankments, road and bridge, reservoirs and other aspects of the protective isolation.
Woven Wire Field Fence features:
1. Preserve the ecological environment and prevent massif from landslide.
2. This quality fencing ensures a solid construction over any terrain.
3. Well-distributed, strong integration,
4. Anti-oxidizing property, Corrosion resistant.
5. Easy maintenance, Short installation period, Less weight, Easy for transport, and Good ventilation.
6. Flat mesh surface, firm and precise structure,
7. Made of high-quality carbon steel wire and stainless steel wire through by our automatic machines.
Woven Wire Field Fence packing and shipping:
